Infinix Smart 8 X6525 OG Ring+Back Panel Guide

The Infinix Smart 8 X6525 OG Ring+Back Panel is a precision-molded original-quality rear housing that restores the factory plastic back, camera decorative ring, and full structural integrity of the X6525 model after cracks, scratches, or wear. It matches OEM dimensions, clip positions, camera cutouts, and color options for a seamless, durable replacement.

Your Infinix Smart 8 X6525 still works fine, but the back looks battered from daily drops, keys in pockets, or just time. A damaged rear panel exposes the battery area, ruins the grip, and makes the phone look older than it is. Replacing it with a proper OG Ring+Back Panel brings back the original slim 8.5 mm profile, precise camera ring alignment, and solid feel without buying a new device.

This guide covers everything you need: exact compatibility for the X6525 (and close variants like X6525D), material differences, installation realities, decision frameworks, and the mistakes that turn a simple fix into a loose or misaligned mess. No generic advice—just the technical details that matter for a lasting result.

Understanding the Infinix Smart 8 X6525 Rear Housing Design

The Infinix Smart 8 (model X6525) uses a glass-front, plastic-back, plastic-frame construction. Official dimensions are 163.6 × 75.6 × 8.5 mm and weight around 184 g. The back is a single-piece plastic battery cover (often called rear housing, backshell, or BAT COVER in service diagrams) that snaps over the mid-frame with plastic clips. It incorporates the vertical dual-camera module cutouts, the ring-LED flash area, speaker and USB openings, and the side-mounted fingerprint power button clearance.

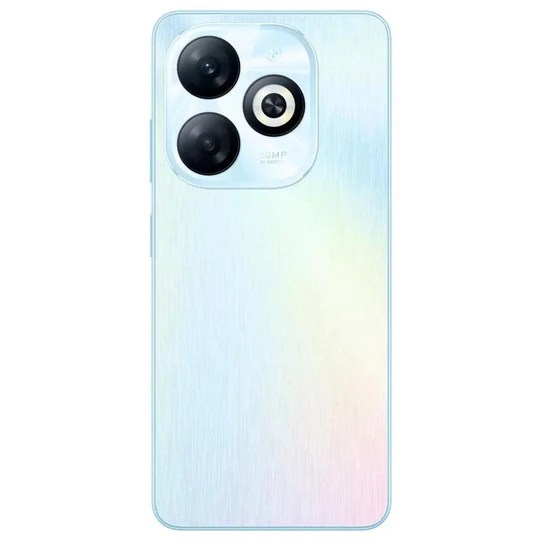

The “Ring” in OG Ring+Back Panel refers to the decorative camera ring/bezel (R CAM DECO in the explosion diagram) that frames the 13 MP main + auxiliary lens setup. This ring is molded as part of the panel or precisely fitted so the lenses sit flush and the flash remains unobstructed. The Magic Ring feature itself is software-driven around the front punch-hole, but the physical rear ring is critical for optical alignment and aesthetics.

Factory panels use high-grade ABS or ABS+PC blend with a soft-touch or matte coating that resists fingerprints and minor scratches. Thickness is typically consistent around 0.8–1.2 mm in critical areas. Clips are engineered for repeated engagement without cracking when handled correctly. Color options match the original lineup: Timber Black, Shiny Gold, Crystal Green, and Galaxy White.

When the original panel cracks or the clips fatigue, two problems appear: structural protection drops and the phone feels cheaper. Dust can enter near the camera module or charging port. A quality OG replacement restores both the mechanical seal and the visual identity of the device.

Why Material and Manufacturing Precision Matter

Not all “original quality” panels are equal. Genuine OEM or high-grade aftermarket units replicate the factory mold. Budget versions often use lower-density recycled plastic that feels lighter, flexes unevenly, and develops stress cracks near the camera cutout after a few months of pocket use.

Key engineering differences include:

• Clip geometry and count (typically a full perimeter of retention points)
• Camera and flash cutout tolerance (must be exact to avoid light leaks or lens misalignment)
• Edge thickness and polishing (poor edges create gaps or sharp feel)
• Surface coating durability (oleophobic or soft-touch layers that resist oils)
• Heat and impact response (the panel sits directly over the 5000 mAh battery)

Premium replacements list pre-applied adhesive or strong double-sided tape in critical zones and claim heat resistance so the panel does not warp near the battery during charging. Color matching under natural light is another differentiator—cheap panels often show a yellowish or bluish shift compared with the original Timber Black or Shiny Gold.

Service diagrams list the BAT COVER as a distinct part (item 21 in the explosion view) separate from the mid-frame and camera lenses. This confirms that a full rear housing replacement is the correct path for external damage rather than attempting partial repairs.

Compatibility and Model Verification

Confirm your device is exactly X6525 or X6525D before ordering. Go to Settings > About phone and check the model number. Physical verification is also possible by examining the original panel engraving or the camera module layout (vertical dual setup with ring flash).

Generic “Infinix Smart 8” covers sometimes fit older Smart series models with different camera placement, button spacing, or SIM tray geometry. An incorrect panel will leave gaps around the charging port, volume buttons, or camera island. Precision-molded X6525 panels align the power/fingerprint button cutout, volume rocker positions, and dual-SIM tray opening exactly.

Color choice should match your original if you want an invisible repair. Available high-quality options typically cover the full original palette.

Installation Mechanics and Real-World Considerations

The back panel of the X6525 is clip-retained rather than fully glued in the manner of glass-backed flagships. Removal usually starts at the SIM tray area or charging port gap with a plastic pry tool. Work around the perimeter until the clips release. Heat is optional but helpful on stubborn adhesive residue. Metal tools risk scratching the mid-frame or nicking the battery.

After removal, clean old adhesive thoroughly with isopropyl alcohol. Test-fit the new panel dry before committing any tape or adhesive. Ensure every clip engages with a firm, even snap. Over-forcing can crack new clips on lower-grade plastic.

Reassembly is the reverse: align the camera ring first, then press sequentially around the edges. Professional technicians often recommend a short curing period if additional adhesive is used. DIY is feasible with basic tools (plastic picks, suction cup optional, SIM ejector), but first-timers should watch model-specific disassembly videos and work on a soft surface.

Longevity depends on both the panel quality and installation cleanliness. A well-fitted OG panel restores drop resistance close to original levels and keeps the phone looking factory-fresh for the remainder of its useful life.

Practical Comparison Table

The F.I.T.S. Decision Framework

Use the F.I.T.S. method to choose and install the right Infinix Smart 8 X6525 OG Ring+Back Panel for your situation.

F – Find the Exact Model Match
Verify X6525/X6525D in settings and cross-check camera layout photos against the listing. Reject any listing that does not explicitly name X6525. This single step eliminates 80 % of fit failures.

I – Inspect Material Claims and Seller Evidence
Look for mentions of ABS/PC blend, OEM-grade molding, pre-applied adhesive, and clear photos of clip structure and camera ring. Prefer sellers with high transaction volume and recent buyer photos showing installed results. Weight and thickness consistency are secondary indicators of quality plastic.

T – Test the Fit Before Final Commitment
Dry-fit the panel. Confirm camera lenses sit flush, buttons operate freely, and all edges seat without gaps. Only then apply or activate adhesive. This prevents irreversible misalignment.

S – Secure Installation and Aftercare
Clean thoroughly, engage clips evenly, and avoid immediate heavy pressure or pocket carry for a few hours if adhesive was added. Pair the new panel with a basic case if you drop the phone frequently. This extends both panel and overall device life.

Follow F.I.T.S. in sequence and you convert a risky purchase into a predictable, high-satisfaction repair.

Common Mistakes to Avoid

Ordering a “Smart 8” panel without confirming X6525 compatibility ranks as the most expensive error. Camera cutouts or button positions differ enough across the series that the panel either will not seat or leaves functional gaps.

Skipping the dry-fit step leads to discovering a warped or undersized panel only after adhesive is applied. Removal then risks damaging the new part or the mid-frame.

Using metal tools or excessive force during removal or installation breaks clips on both the old and new panels. Plastic picks cost little and preserve the structural integrity of the replacement.

Ignoring color and finish matching produces a phone that looks repaired rather than restored. A Shiny Gold panel on a Timber Black device draws attention to the repair every time the phone is used.

These mistakes compound: a cheap, poorly fitted panel often needs replacement again within months, raising total cost above a single quality OG purchase.

Actionable Checklist Before Purchase and Install

[ ] Confirm model number is X6525 or X6525D in Settings > About phone
[ ] Match the exact color of your current panel
[ ] Verify the listing shows the camera ring and dual-lens cutout layout
[ ] Check for pre-applied adhesive or included tape
[ ] Review recent buyer photos of installed panels
[ ] Gather plastic pry tools, isopropyl alcohol, and a clean workspace
[ ] Plan a dry-fit before applying any adhesive
[ ] Decide whether DIY or professional installation suits your skill level

A quality Infinix Smart 8 X6525 OG Ring+Back Panel restores structural protection, factory aesthetics, and daily usability at a fraction of the cost of a new phone. Prioritize exact model match, material quality, and careful installation using the F.I.T.S. framework and the checklist above. The result is a device that looks and feels like the day you bought it.

Select a verified high-grade OG Ring+Back Panel that explicitly lists X6525 compatibility and proceed with the replacement. Your phone will thank you every time you pick it up.

FAQs

Does the OG Ring+Back Panel include the camera lenses?
No. It includes the decorative ring and housing cutouts. Original lenses transfer to the new panel or remain in place depending on the damage.

Will a new back panel affect the side fingerprint sensor?
When the cutout is correctly molded for X6525, the power button/fingerprint sensor functions normally. Misaligned panels can create pressure or gap issues.

Is heat required to remove the original panel?
Not always. Many X6525 units release with careful plastic prying from the SIM tray or charging-port gap. Mild heat helps only if residual adhesive is present.

Can I use any Smart 8 back cover?
No. Only panels specified for X6525 (or confirmed X6525D) guarantee correct camera, button, and tray alignment.

How long does a quality replacement last?
With proper installation and normal use, a high-grade OG panel typically lasts the remaining service life of the phone—often 1–2+ years of daily carry.

Does the replacement restore water resistance?
The original X6525 is not IP-rated. A well-seated panel with intact seals reduces dust and splash entry but does not create formal water resistance.

Should I replace the mid-frame at the same time?
Only if the mid-frame itself is bent or cracked. Most back-panel damage is external and does not require mid-frame replacement.

What tools are essential for DIY?
Plastic pry tools or picks, SIM ejector, isopropyl alcohol, and optionally a suction cup. Avoid metal tools.

Will the new panel match the original soft-touch feel?
Premium OG units closely replicate the factory coating. Budget panels often feel harder or more slippery.

Is professional installation recommended?
Yes for first-time users or if the phone has additional internal damage. Experienced DIYers can complete the job in 15–30 minutes with care.

How do I clean the phone before installing the new panel?
Remove all old adhesive residue with 90 %+ isopropyl alcohol and a lint-free cloth. Ensure the mid-frame is free of dust and debris.

Can the panel be painted or customized?
Technically yes, but coatings can interfere with fit and heat dissipation. Most users prefer original color matching.
